Vendor code: 1H17Y
Waterproof carbon foot 1H17Y
activity level · maximum user weight
Short answer: Carbon fiber foot for use in fresh, salt and chlorinated water, with a split sandal-type toe and drainage holes in the cover. 8 stiffness categories for users from 45 to 150 kg.
- User weight range
- 45 to 150 kg
- Mobility
- M2 to M4
- Stiffness categories
- 8
- Weight
- 740 g
Indication
Transtibial and transfemoral prostheses for users with activity level M2 to M4, without sports use.
Not indicated for
- Sports use.
Features

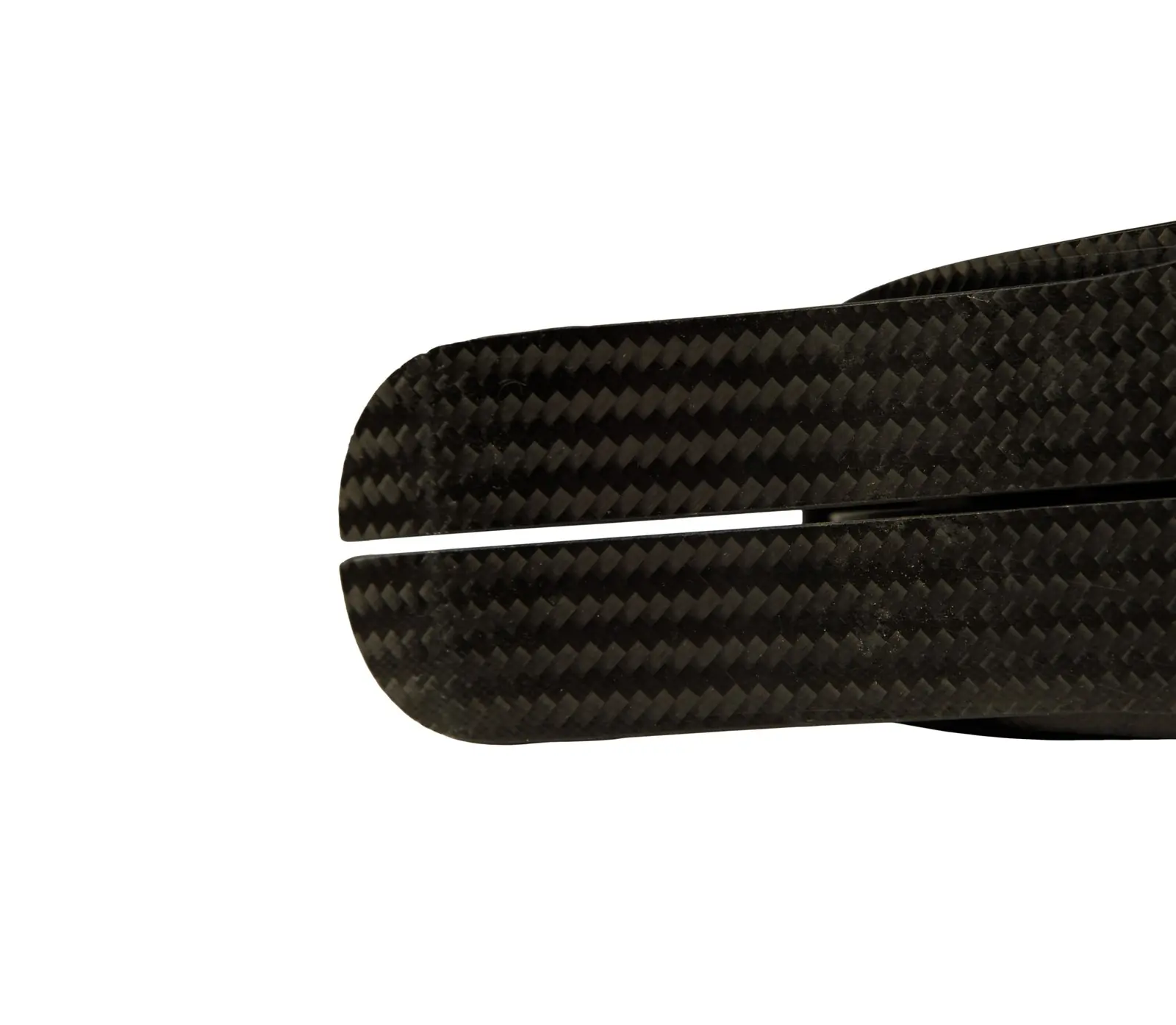

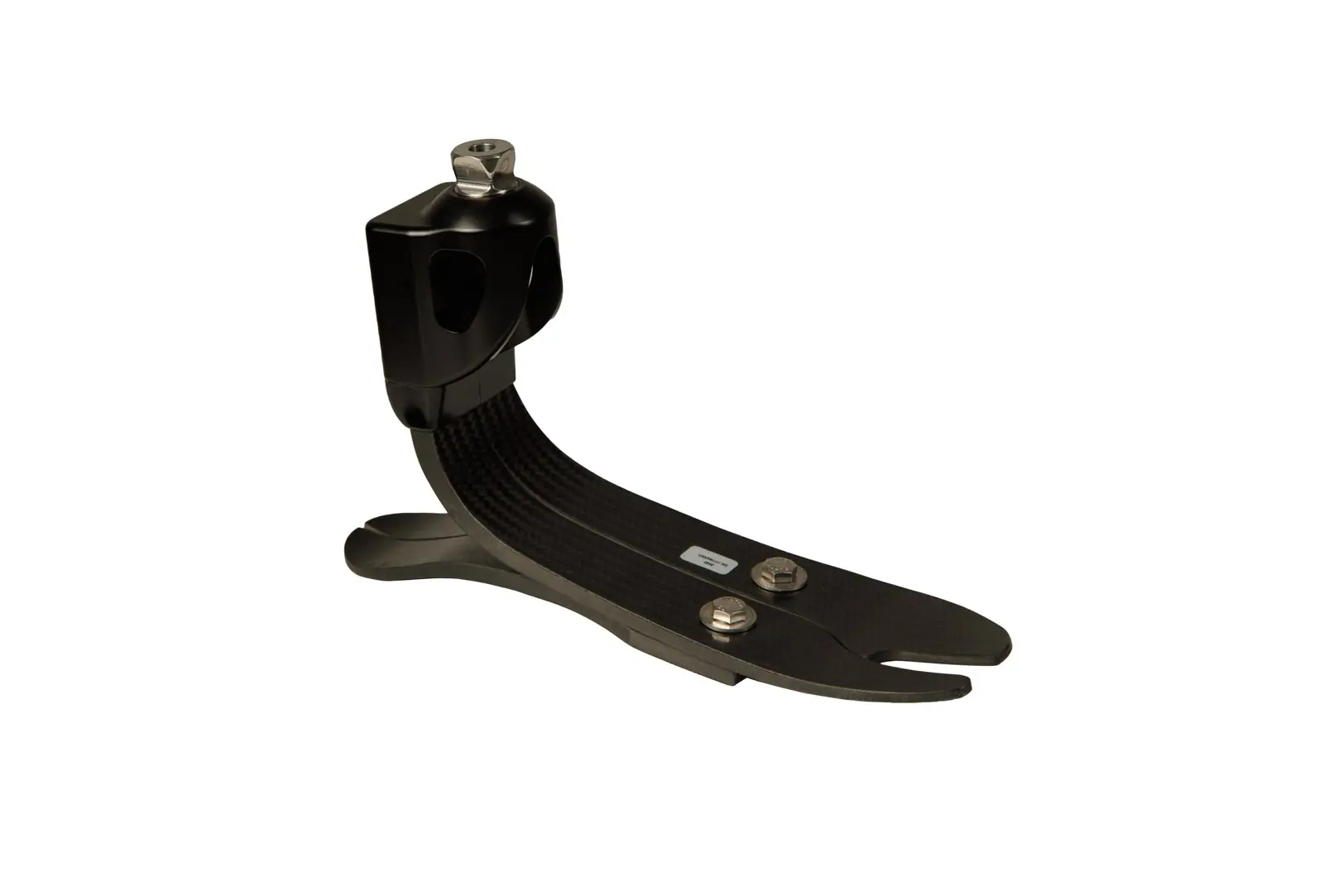

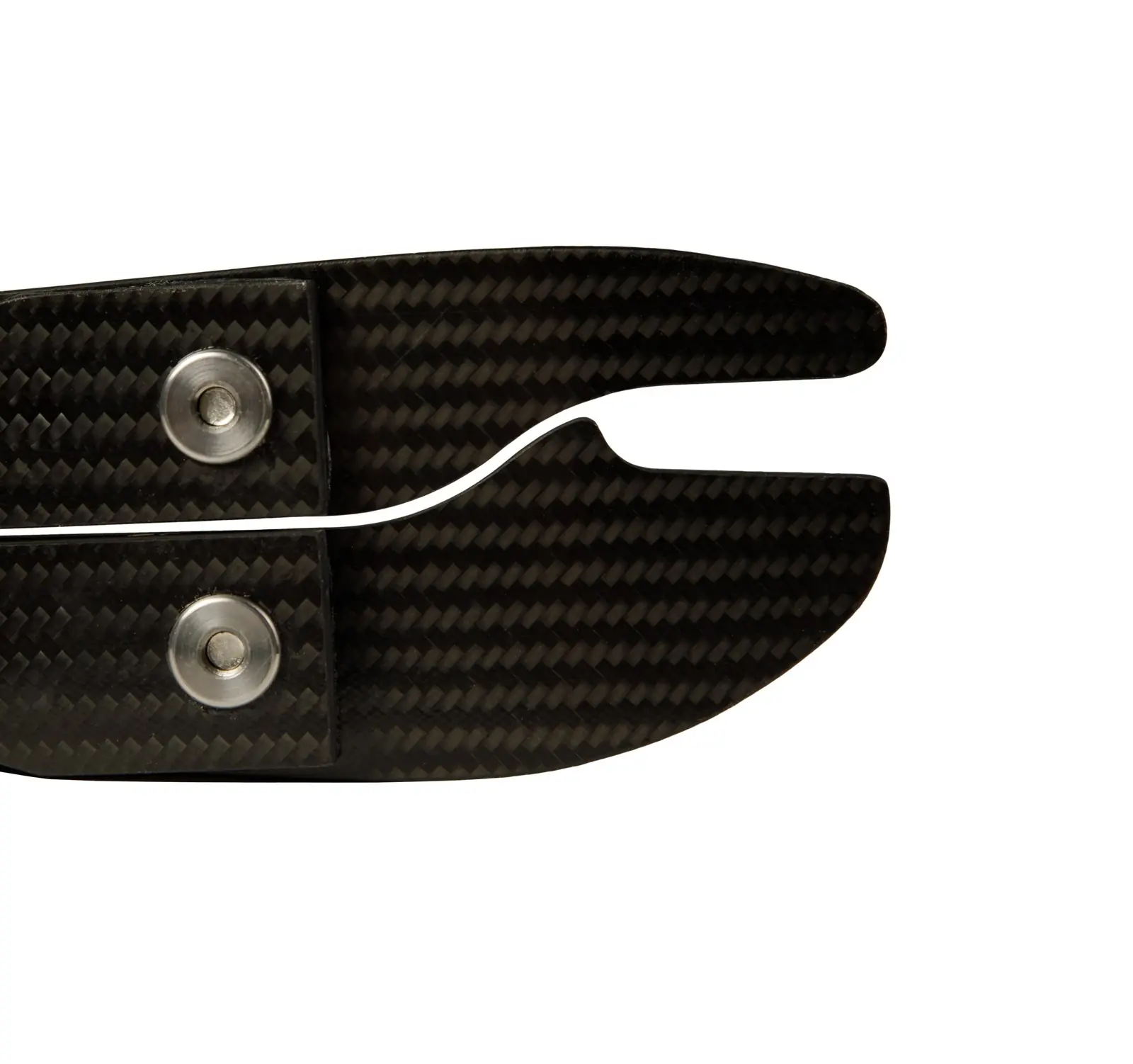

- Elongated carbon blades with non-linear stiffness, which return energy in proportion to the pace of the gait.
- Easy, smooth roll-over, with less load on the spine and the preserved limb, according to the manufacturer.

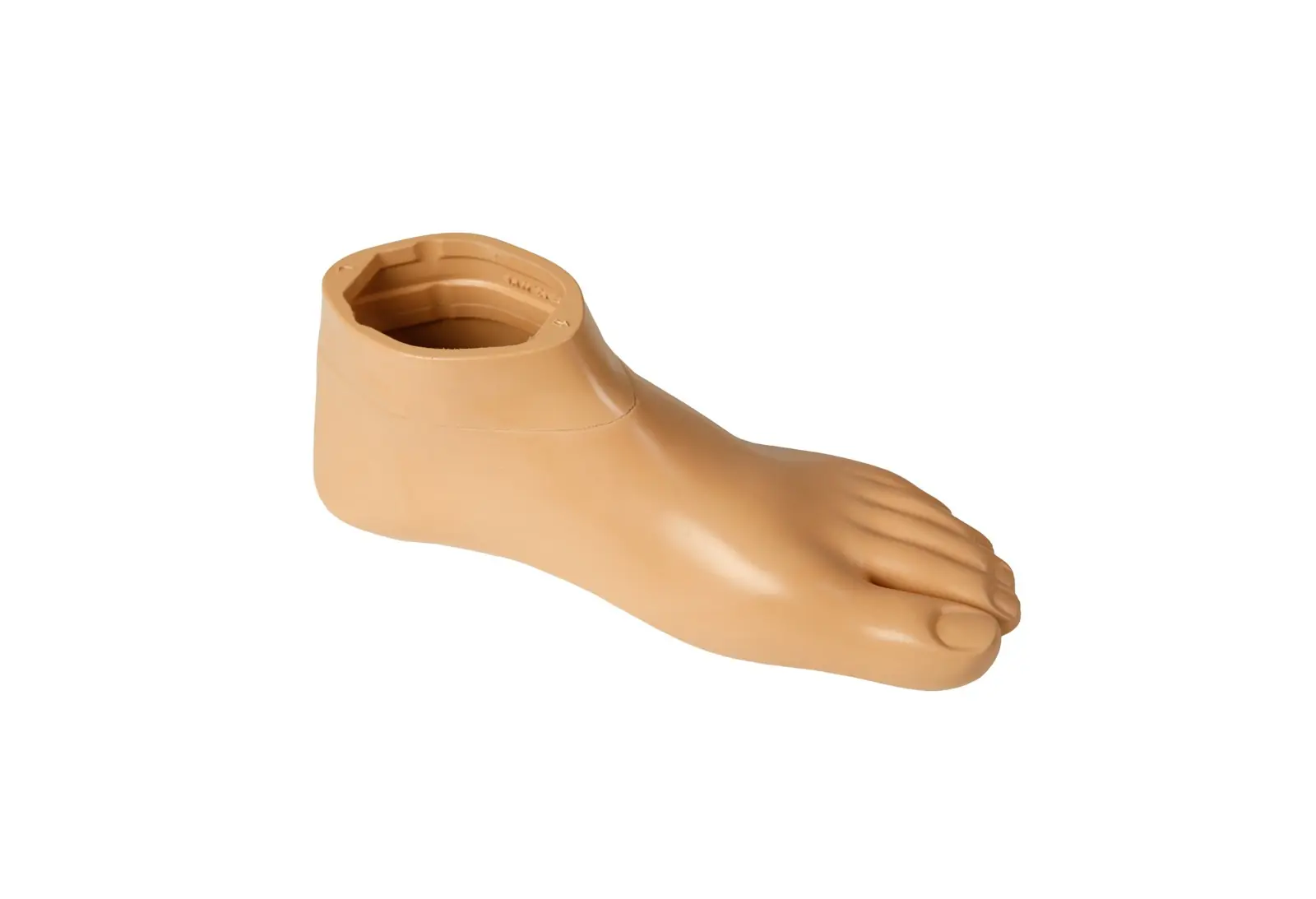

- Cover with a split sandal-type toe and drainage holes.
Technical data
| Manufacturer code | 1H17YB |
|---|---|
| User weight range | 45 to 150 kg |
| Activity level | M2 to M4, without sports loads |
| Sizes | 22 to 28 cm |
| Stiffness categories | 8, by size range: 1 to 4, 1 to 5, 2 to 7, 2 to 8 and 4 to 8 |
| Build height | 125 or 147 mm |
| Weight | 740 g ±15 (size 27, category 5) |
| Heel height | 10 ±5 mm |
| Water resistance | fresh, salt and chlorinated water |
| Sides | right and left |
Frequently asked questions
Who can prescribe this component?
The prosthetist, after assessing the amputation level, weight, routine and mobility level of the user. Metiz Brasil does not sell directly to patients.
How do I buy for my workshop or clinic?
Through authorized distributors or directly from the Metiz Brasil sales team, by WhatsApp or by the e-mail on the contact page.
Is there a warranty?
Yes. The term varies by component and is stated at purchase by the Metiz Brasil team.
Sources
Technical data from the data sheets published by the manufacturer, checked in October 2026. If there is any difference, the documentation supplied with the product prevails.
